Topcon Total Stations

Viewing 1 to 6 (6 Total)

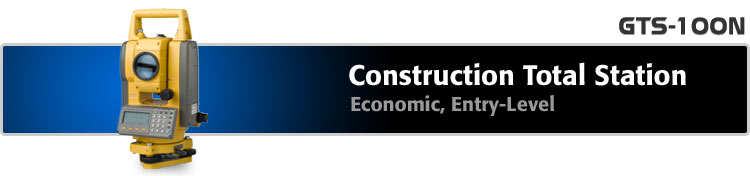

GTS-100N Construction



The new Topcon GTS-100N series total station combines the traditional Topcon rugged field-ready quality and accuracy with economical, compact design that is perfect for everyday measuring and positioning applications such as topo and construction layout.

Please feel free to request a demo!! Call for pricing and availability!

For brochure click here: GTS100N Brochure.pdf


GTS-100N features:

  • Economical, value priced measuring solution
  • Rugged, durable, water resistant design
  • Two accuracies to choose from 2” & 5”
  • Expanded, Full numeric keypad
  • On board programs & 24,000 point data storage
  • Ideal as a construction stakeout total station
  • Perfect when combined with FC field controller and software

The entry-level value choice is the GTS-100N. Built with legendary Topcon precision and durability, the GTS-100N provides the construction professional with a dedicated lay-out solution. Use the on-board software to layout points in the field, confident that with Topcon, you’ll be right on target. Or use any of Topcon’s field controllers running one of our range of software packages tailored to the tasks you want to perform.


GTS-240NW Series

The Best Value Total Stations Offering Unparalleled Dependability and Functionality. Brochure:

Ideal Tool for Day-to-Day Survey and Layout Tasks

The GTS-240NW series provides unmatched performance and dependability backed by Topcon’s industry-leading technologies. Its IP66 dust/water protection and 2.5” telescope resolving power lead the industry in its class.. The GTS-240NW series of total stations offer every function needed for day-to-day tasks that include the Bluetooth wireless connectivity, the point guide that speeds up stakeout tasks, the laser plummet for quick instrument setup, and many functions.



  • 24-key Alphanumeric Keyboard
  • TopField and Road Onboard Software
  • 2.5” Highest Telescope Resolving Power
  • Point Guide for Stakeout/Layout
  • Laser Plummet for Quick Setup
  • Bluetooth® Wireless Connectivity
  • IP66 Dust and Water Protection
  • 10-Hour Operation per Battery


TopField / Road Software with Alphanumeric Keyboard

The onboard “TopField” and “Road” software dramatically increases efficiency in topo data collection, construction layout, as well as road stakeout tasks. The 24-key alphanumeric keyboard allows for quick inputting of point numbers, codes, attributes, and other necessary data.

Choice of Styles – Onboard Software or Field Controller

With the enhanced functionality, the GTS-240NW allows for data collection and layout works without using an external controller or PC. For the users who prefer to use a field controller, the GTS-240NW provides a Bluetooth capability for a convenient cableless connection.


Topcon ES Series

ES Series Brochure

Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology

The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

Ultra-Powerful, Advanced EDM

  • 500m non-prism range
  • 4000m prism range
  • Less than 1 second fine measurement

The exclusive LongLink™ communications functionality in every ES Series
model provides operational capabilities never before offered in a manual total
station. With a 300m range wireless communication using Bluetooth Class
1 technology, you can now operate the data collector from the “smart-spot”
of the crew, the prism pole. Also referred to the two-man, economical robot
solution, Topcon’s new LongLink™ technology brings a whole new level of
flexibility to your manual field crew.

Advanced Angle Encoder System

  • “Best in Class” 1” angle accuracy available
  • Incorporates exclusive IACS (Intelligent Automatic Calibration System) on 1” & 2” models

Ultimate in Rechargeable operation - 36 Hours!

  • Up to 36 hours of operation on a single charge.*1
  • Eliminates the need for nightly recharging and carrying extra batteries.
  • Work with confidence all day without the worry of dead batteries.

Rugged, Waterproof Design

  • Waterproof/Dustproof IP66 design handles the toughest environments
  • Magnesium-alloy housing providing stable angle accuracy Completely

Easy Access USB 2.0 Memory

  • Up to 8MB storage
  • Environmentally protected
  • Compatible with industry standard accessories and cables

*1 Operating time may vary depending on environmental conditions and type of work being performed.

Topcon GPT-3000LW Long Range Reflectorless


Please feel free to call (504) 834-8392 for pricing and/or demo! Click here for brochure: GPT3000LW_Brochure.pdf. With its revolutionary 1200m reflectorless range the 3000LW sets a new standard for EDM range, delivering the power for difficult shots that others just can't measure up to! The Topcon 3000LW series measures nearly four times farther than any other competitive total station, once again demonstrating the technology advantages that Topcon offers.


GPT-3000LW Series Features:

  • 1200 Meter Reflectorless range – New long range reflectorless mode leaves competitors far behind. Measure 300m to ANY surface!
  • Bluetooth® Communications – Tethered to your instrument with bothersome, trouble prone, expensive cables? Not any more! Just add a Topcon FC-100 or FC-2000 with wireless Bluetooth capability and forget your cable problems forever!
  • Precise measurements – The ability of the 3000LW to measure long range is significant, but real advantage of this technology is what this increased measurement power means at shorter distances. The Topcon GPT-3000LW outperforms all other reflectorless total stations when measuring to difficult targets such as hanging wires or dark asphalt.
  • Dual Laser optics – Our dual laser optics system uses one narrow beam for non-prism functions, and a broader beam when using a prism for more stable long-range measurement.
  • Visible laser pointer – Our state-of-the-art visible diode technology puts a bright, flashing spot of light exactly at the point to be measured. And our Class 1 laser is so safe, you can use it in heavy traffic areas.
  • Putting the competition "on-the-spot" - Most reflectorless instruments use a laser for distance measurement, with varying spot quality over distance. Topcon's GPT-3000LW uses the industries most advanced, highly focused infrared beam for a very stable, sharp spot that is less resistant to "spreading" over distance.

Topcon's GPT-3000LW uses a dual laser optics system, one narrow beam for non-prism functions, and a broader beam when using a prism. This stabilizes the beam over long distances providing accurate measurement, even in adverse atmospheric conditions such as heat shimmer.

Topcon IS Imaging Station















Please feel free to contact us at (504) 834-8392 for pricing and/or a demo! For brochure click here: IS Imaging Station Brochure. Some products define an era. Others create a new one. The new Topcon IS scanning, robotic, reflectorless imaging station is that product. Its only limit is your imagination.

Topcon's IS combines the best of two worlds, advanced imaging and high-accuracy surveying, incorporating real-time field imagery with spatial data. The IS's powerful functionality is controlled using Topcon's exclusive ImageMaster software that produces "photography with dimension", a revolutionary and cost effective alternative to laser scanning. Reality captured for results unimaginable.

Imaging Station Series Features:

  • Photo Fieldbook - creates a 360° Photo Fieldbook. In seconds.
  • IntelligentScan automatically recognizes significant features in the images. Its 20 pps scan rate is ideal for most applications, and its 2000m precision reflectorless range is tops in its class.
  • ImageDrive lets you visually operate from the controller and easily switch from imaging to prism tracking.
  • First with Independent Control to allow complete control from your computer, WiFi-equipped FC-2200, and other compatible devices.
  • Integrated dual-camera array with wide-area and 30x scope view so you can zoom in on the detail you need.


A Robot at Heart…

The IS doesn't forsake its robotic roots. The IS has all the features of our GPT-9000A robotic total station and more.

Our 9000A series robotic system features sophisticated technology unique to Topcon– our one-touch quick lock feature that set the standard in robotic target acquisition has taken another step forward, with the sleek new RC-3 system. All 9000A series robotic systems offer reflectorless measurement superior to any other instrument available – capable of precision measurements at a mind-boggling 2000 meters! Packed with a wide variety of advanced technologies, the Topcon GPT-9000A series robotic total station demonstrates why Topcon continues to be the world's leader in precision survey instrumentation:

  • Innovative, completely cable-free system design
  • Superior X-TRAC™ Quick-Lock tracking technology
  • Full-color, graphical Windows Mobile instrument & field controller interface
  • The most advanced, longest range, and most powerful reflectorless technology available
  • Integrated interference free 2.4 GHz SpSp robotic data communications

The X-TRAC 7 robotic system upgrade is now available for the IS instrument. This enhancement to firmware and software affects the robotic tracking, quick-lock, radios, and data collector performance.

Topcon OS Total Station

Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology

 The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.


  • Advanced Security & Maintenance with New TSshield™
  • MAGNET Field On-board
  • Exclusive LongLink™ Communications Functionality
  • Fast and Powerful EDM
  • Advanced Angle Accuracy
The OS is the perfect total station for many field applications including:

 Land Surveying Property
• Land Surveying Topo & Stakeout
• Earthwork Volumes

• Building Interior Layout
• Construction of Roads
• Law Enforcement Mapping

Primary OS features include:
Exclusive LongLinkTM Ultra-Powerful, Advanced EDM

• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.

• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot

Advanced Angle Encoder System EDM Trigger Key

• “Best in Class” 1” angle accuracy available
• Incorporates exclusive IACS
  (Independent Angle Calibration System)
  on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology

• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands

Advanced OS features include: Standard OS package includes:

• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button

• OS Total Station
• Battery and Charger (one battery and charger included)
• Lens Cap and Hood
• Tool Kit
• USB stick with digital Manual
• Quick Guide
• Carry Case and Carry Straps


Achieve higher levels of production with MAGNET Field on-board software

Part of the MAGNET Solution, MAGNET Field On-board runs directly on the OS total station touch screen. Utilize the on-board USB port to plug a USB flash drive into the side panel for fast file transfer. Or for more traditional transfer, use a USB mini cable and transfer files to MAGNET Office Tools.

With direct exchange between MAGNET Field On-board and MAGNET Office Tools, you will see an increase in overall productivity.

All of the total station functions are available directly on-board.  In Survey, there is Topo, X-Section, Find Station, Tape Dimension, and Missing Line.  In Stake, there is Points, Lines, Offsets, Surface, Point in Direction, Curve, Real-Time Roads, Road, Slope, and Linework staking.  Plus many calculation functions like Inverse, Intersection, Curves, Area, Corner Angle, Offsets, Adjust, Traverse, and DTM.
