GA-92XTi & GA-92XTd Magnetic Locator

The locator that's always by your side, whenever you need it

Time to make a move to the new Schonstedt XT, the greatest innovation in magnetic locating since the celebrated "yellow stick". In its holster, the XT leaves both hands free on the way to the job site, then gives you the freedom to do your best work with one hand tied behind your back.

You've never seen a Magnetic Locator like the XT, and once you use it, you'll never use another. When we asked our most demanding customers what they look for in a Magnetic Locator, they told us:

Accuracy | Reliability | Ease of Use

Fifteen months of research, design, and testing has produced the new Schonstedt XT, the most portable Magnetic Locator ever made.GA-92XT in hip holster

  • One hand operation

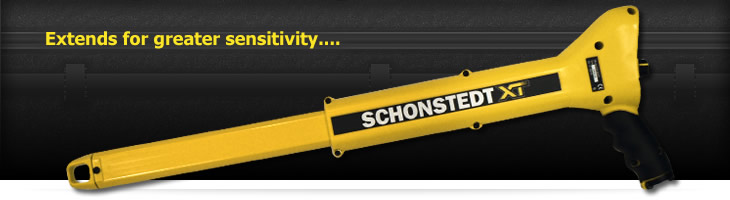

  • Operates in both retracted and extended modes
  • Fingertip control of volume and sensitivity
  • Quick change battery compartment
  • Battery indicator on both models

One hand operation makes finding faster, providing both audio and visual (XTd model) indication of ferrous objects up to 16 feet underground. And the new XT follows the Schonstedt tradition of ruggedness and reliability. So go ahead, make your move to the new Schonstedt GA-92XT.

Detect the magnetic fields of all ferromagnetic objects property markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, unexploded ordnance up to sixteen feet below the surface.

GA92-XT Features

  • Most Portable
  • Comes with Holster & Belt
  • Smallest for easy storage
  • One Handed Operation
  • Battery Replacement in grip (does not expose electronics)
  • Most Ergonomic
  • Lightweight, easy-to-use-design reduces search time
  • Audio & Visual Output
  • Battery & Sensitivity Indicators
  • Continuous levels of Sensitivity
  • Operates in both retracted and extended modes
  • Signal Strength and Polarity Indications
  • No response to aluminum, brass, or copper
  • Patented HeliFlux® sensors
  • Modular construction; high performance components7-year warranty

When you have your hands full on the job site, carry the XT on your hip. You're a highly trained, experienced professional but carrying heavy tools is still part of the job. When a new product comes on the market that allows you to lessen your load and increase productivity, it deserves some attention.

GA-92XT Specifications: Two models to choose from

XTd Model faceplate XTI Model faceplate

XTd Model
with LCD gain, battery and signal strength/polarity display

XTi Model
with LCD gain and battery display

Audio Output

Audio Signal increases in frequency with gradient-field intensity. Idle frequency = 10 Hz

Visual Output*

Expanding bar graphs indicate polarity (+ or -) and relative strength (GA-92XTd model only)
Battery Life 24 Hours (intermittent usage)
Input Power Supplied by one 9-volt lithium battery
Battery Indicator 4-segment LCD
Volume Continuous control
Gain Continuous control, with range indicated by a 4-segment LCD at each quarter turn, L @ 0-1/4, M @ 1/4-1/2, H @ 1/2-3/4, XH 3/4-Full
Weight Approximately 2.4 lb. (1.1 kg)
Operating Temp -13° F to 140° F (25° C to 60° C)
Overall Length Unit extended: 26 in. (~66 cm)
Unit collapsed: 15.5 in (~39 cm)
Water Resistant Length 11.5 in. (~29 cm) (when extended)
Nominal Sensor Spacing 9.5 in. (~24 cm)
Construction 30% glass-filled nylon, high impact ABS, .2" (~5 mm) wall thickness

* Refers to GA-92XTd model only.

(We reserve the right to change specifications)
