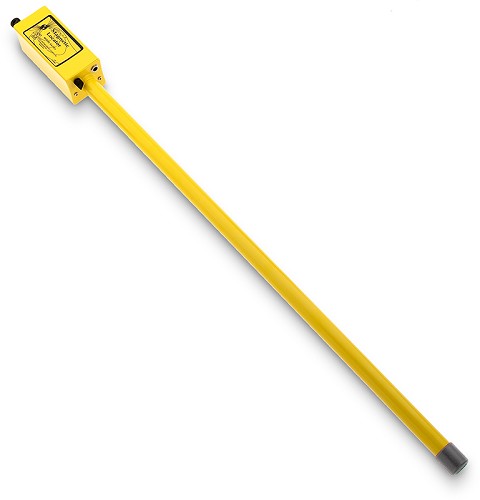

GA-52Cx

GA-52Cx

GA-52 Cx Picture Schonstedt.jpg

Applications:

  • Detects the magnetic field of iron and steel objects as well as energized power lines
  • Provides audio detection signals that peak in frequency when locator's tip is held directly over the target
  • Designed for one-hand operations
  • On/Off-Sensitivity and Volume controls are located on the underside of the cover

MSRP: Call For Pricing

GA-52Cx Features:

  • Seven Year Warranty
  • Enhanced target definition
  • Unsurpassed detection range
  • Piezoelectric speaker
  • Clear, sharp, detection signal pinpoints the target
  • Five individual sensitivity settings
  • No response to aluminum, brass, or copper
  • Ease of operation reduces search time
  • With experience, user can distinguish between small pieces of scrap iron and actual targets
  • 40-hours operation (intermittent usage) on two economical 9-volt batteries
  • Modular construction with a weight of only 2.5 pounds
  • High performance components
  • Weather protected controls
  • Rugged lightweight case
  • Patented Heliflex® sensors

GA-52Cx Base Package Includes:

  • GA-52Cx Metal Locator
  • Case
  • 2 Alkaline 9-volt Batteries

GA-52Cx Specifications:

Input Power
Two alkaline 9-volt batteries
Battery Life
40 Hours (intermittent usage)
Output
Approximately 40 Hz audio tone on speaker
Weight
Approximately 2.5 lbs (1.13 kg)
Operating Temp
-13° to 140°F (-25° to 60°C)
Overall Length
42.3 in (107.4 cm)
Waterproof Length
34.5 in (87.6 cm)
Nominal Sensor Spacing
20 in (50.8 cm)
Construction
Modular, all solid state

Useful Links:

Schonstedt GA-52Cx/GA-72Cd Product Brochure - English

Schonstedt GA-52Cx Instruction Manual - English

Schonstedt GA-52Cx Parts Diagram - English


*
